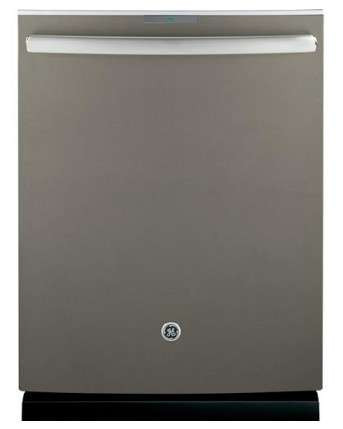

PDT845SMJES GE 24" Profile Series Stainless Steel Interior Dishwasher with Hidden Controls - Stainless Steel


Advanced Wash System With More Than 140 Cleaning Jets
Achieve the ultimate clean from an industry-leading number of jets that deliver complete washing coverage to every corner of the dishwasher.

Deep Clean silverware jets
No matter how you load your silverware basket, powerful jets blast away stuck-on food for silverware that's always spotless.

Bottle Jets
Clean hard-to-reach areas inside tall items with two dedicated jets integrated into the upper rack that shower water deep inside for the ultimate clean.

Easy Touch Adjustable Upper Rack with 2 Stem Safe Shelves
Quickly adjust the upper rack 2 inches up or down to accommodate tall glassware and 10 ½" plates with plenty of room in the bottom rack for large platters and cookie sheets.

Full Extension Smooth Glide Upper Rack with Fold-down Tines
Easily fit large or odd-shaped items in the upper rack.

Hidden Vent with Fan Dry and Hidden Heater
Get dry and table-ready items every time thanks to a 1,000-watt hidden heater and fan that circulates the air to remove moisture.

Reversing Quad Blade Wash Arm
Dishes come out impressively clean thanks to this revolutionary lower wash arm, with 25 spray jets reversing direction to hit items from every angle.

Features

Dispenser - Rinse Aid with Indicator and Adjustment. Electronic Low Rinse Aid Sensor

Dishwasher Options - Delay Start 1-12 Hr.. Pre Soak. Child Lock. Wash Number of Place Settings - Up to 16

Upper Rack - Premium Height Adjustable. Ball-Tip Tines. 2 Stem Safe Shelves. 1/2 fixed tines, 1/2 fold down tines. 1 Rack handle

Wash System Features - Variable Speed Dual Pumps and Motors. Automatic Temperature Control. Drain Pump. Piranha™ Hard Food Disposer with removable filter. Reversing Quad Blade Lower Wash Arm. Quad Blade Middle Wash Arm. Deep Clean Silverware Jets. Bottle Jets. Side Jets. 140+ Spray Jet Wash System. Hidden Heater. Automatic HotStart

Control Type - Top Controls. Electronic Tactile Buttons

Dishwasher Drying Features - Power Dry - On/Off. Fan Assist Dry

Dishwasher Control Features - LCD Control Display with Cycle Status Bar on door. White LEDs. 1 "Clean" Light, 1 "Sanitized" Light, 1 "Low Rinse Aid" Light. Last Cycle Memory. Audible End-of-Cycle Signal

Rack Color - Black Pearl Gray

Style - Built-In

Water Filtration System - 100% Filtration with Piranha Hard Food Disposer and Removable Filter

Number of Cycles - 7

Wash System - 800 Series. 3-Level

Wash Arms - 3 Wash Levels. Lower- Reversing Quad Blade. Middle - Quad Blade. Bottle Jets. Side Jets. Jets - Variable Pressure

Dishwasher Cycles - Auto Sense. Heavy Wash. Normal Wash. Light Wash. Rinse. Express. eWash

Rack Features - 2 Utility Shelves with Stem Safe - Upper. Ball-Tipped Tines. Adjustable Upper Rack. 3-Piece Siverware Basket with Cell Covers. Fold-down tines Upper. Fold-Down Tines - Lower

Number of Options - 10

Floor Protection - Floor Protect with Alert

Racking Material - Nylon

Leveling System - 4 Leveling Legs

Exterior Style - Traditional

Showroom Power Mode - Yes

Tub Type - Tall Tub

Latch - Pull with Handle

Lower Rack - Ball-Tip Tines. Multi-Position Fold Down Tines. 1 Rack handle

Tub and Door Liner - Stainless Steel

Sensor - Clean Sensor

More Details

Filter

App Filter - Cabinet Width Dish Traditional 24 in.

App Filter - Stainless Steel Interior Yes

App Filter - Food Disposer Yes

App Filter - Product Type Dish Built-In Top Control

App Filter - Bottle Wash Yes

Appearance

Handle Color - Stainless Steel w/Chrome

Installation - Side Installation or Top Installation Included.

Built-Up Floor Capable. Flush Cabinet Installation

Door Style - Long Door with Top Controls

Door Appearance - Full-length door

Color Appearance - Stainless Steel

Rounded Handle - Stainless Steel

Power Ratings

Power Connection - Power Cord - Not Included

Volts/Hertz/Amps - 120V; 60Hz; 9A

Calrod Heater Watts - 1060

Economical / Quiet

Door Insulation - Insulation. Mastic

Motor Type - Variable Speed

Quiet Package - 42 dBA

Quiet Features - Quiet Water Valve. Sealed Toe Kick. Tub Collar Trim

Outer Wrap - Full-wrap Blanket. Bitumen

APPROXIMATE DIMENSIONS (inches)
Height : 34
Width : 23 3/4
Depth : 24
